SPECIFICATIONS

storage information: local U disk storage

is_customized: No

Type: Combination

Size: As Picture

Printing height: 2-12.7mm (adjustable)

Package: BOX

Origin: CN(Origin)

Name: Handheld Inkjet Printer

Model Number: Handheld Inkjet Printer

Feature 2: High-Definition Printing

Feature 1: HD 4.3inch Touch Screen

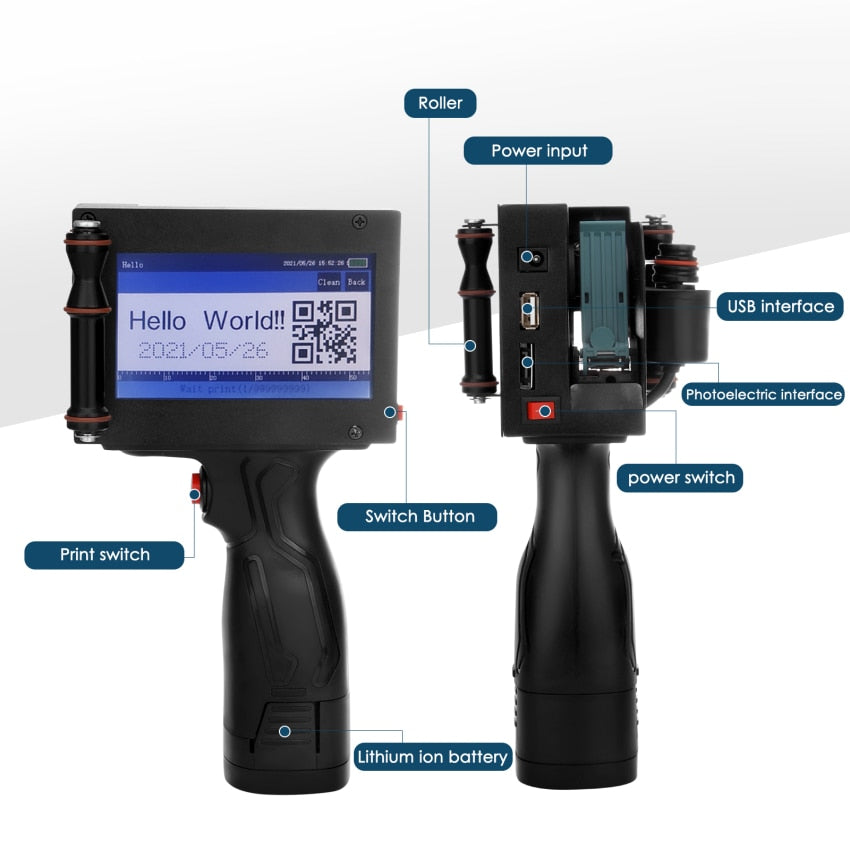

External interface: USB. Optical interface. Charging interf

Definition: 300-600DPI

DIY Supplies: Paint & Decorating

Control panel: 4.3 inch smart touch screen

Brand Name: FURONGHUA

Application: Household Tool Set

Feature：

1.HD 4.3inch Touch Screen：Our handheld coding machine is equipped with a 4.3-inch high-definition touch screen and High LCD screen resolution, and supports built-in touch keyboard input. for easy operating and time saving.

2.High-Definition Printing：This Handheld Inkjet Printer adopts the High-Definition Quick-Drying Ink Cartridge. The ink will not block the ink outlet and printing is smooth & brightly colored, so the word is very clear and strong adhesion.

3.This handheld printer can print on the surface of boards, carton, stone, pipe, cable, metal, glass, plastic, etc to meet your various printing needs. And it is compact and light which is easy to carry and printable anytime.

4.The handheld printer is charged separately, safe and reliable, which is equipped with a 1500mAh battery which can work continuously for about HOURS. The text editor has many options and print high-quality text graphics at 360 degrees, as well as various barcodes, including pictures.

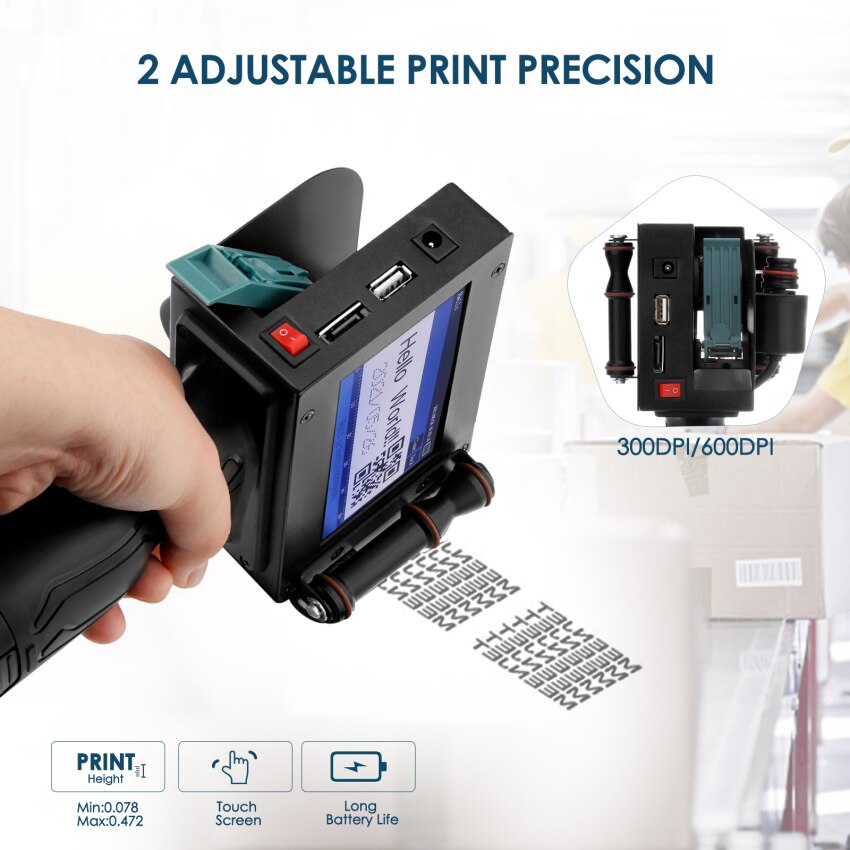

5. It is available to use USB flash disks to import pictures, TXT text，then print out directlt. Adopting 600DPI high-precision printing and anti-clogging nozzles, the height of up and down can be adjusted from 2-12.7mm, and the length of left and right is not limited.

Specifications:

storage information: local U disk storage

Printing height: 2-12.7mm (adjustable)

Control panel: 4.3 inch smart touch screen

Printing distance: 2-10mm (best 2-5MM) distance between nozzle and spray surface

Definition: 300-600DPI (high definition)

External interface: USB. Optical interface. Charging interf

Printing content: English; number; symbol; two-dimensional code; barcode; picture; date; counter; variable data; serial number; logo, etc.

Printing material: plate; carton; stone; pipe; cable; metal; plastic; electronic device; auto parts, etc.

Working environment: temperature: 0-50℃ (20-30℃ is the best), humidity 40-60%Rh

Ink cartridge precautions:

1. To install and unload the ink cartridge, you need to do it in the off state or in the main interface state.

2. If you do not use the machine for more than 20 minutes, you need to remove the ink cartridge from the machine, buckle the buckle and put it in place

3. If it appears If the inkjet is not clear or can not be ejected, it may be that the ink cartridge is exposed to the air for a long time, which causes the nozzle to dry Blocking is a normal phenomenon.Use a soft paper towel to block the nozzle and shake it vigorously, and then wipe it along the direction of the nozzle

4.The ink cartridge is recommended to be used within 3 months

Frequently Asked Questions:

A. What to do if printing is not possible:

1. Check whether the timing belt is off

2. Check whether there is ink in the ink cartridge

3.Confirm whether the print display on the main page of the startup page is printing

4. After turning off the printer; Reinstall the ink cartridges correctly

B. It can be printed; but the handwriting is not clear:

1.Check whether the surface of the print head is clean and dry, and carefully clean the surface of the print head with a clean soft paper towel.

2.When the printer is not printing, take out the ink cartridge and shake the print head down several times. Stick a clean soft paper towel on the surface of the nozzle, and the ink in the box will divert

3.The above operations still can’t be solved, please replace the ink cartridge

C. The screen will automatically stop if it is turned on for a period of time without using it: the screen will light up if you need to click it.

D, the touch screen is not sensitive and does not respond: reboot; press and hold the handle button for a few seconds to enter the screen correction mode; then click the cross asterisk on the screen (be sure to click the cross asterisk during the click) and follow the instructions to restore

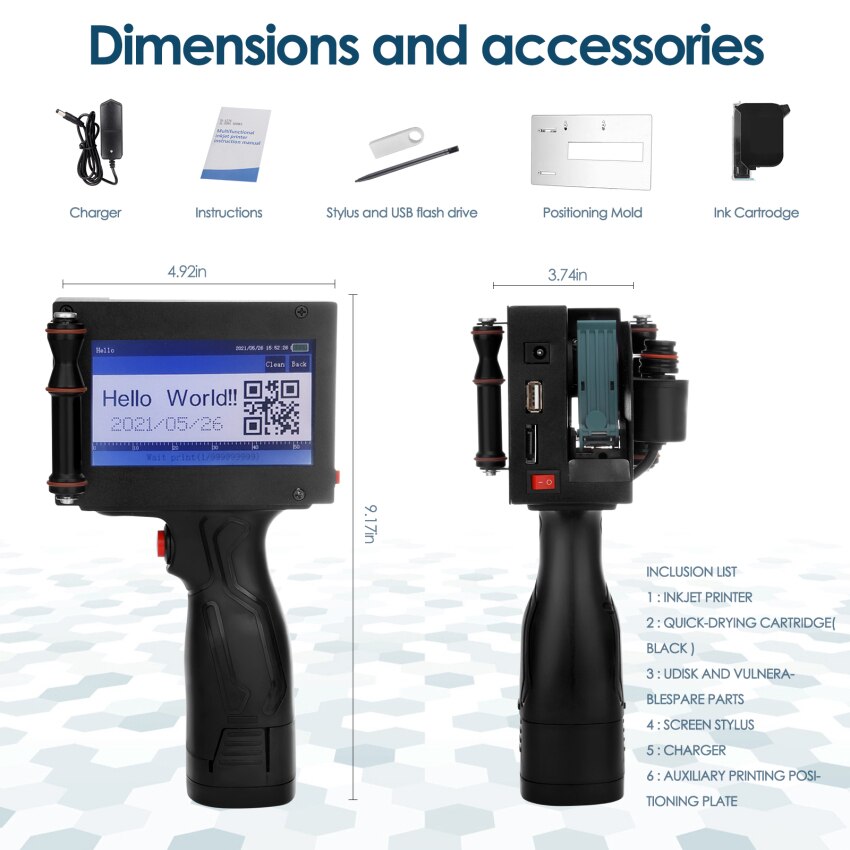

Packing list :

1*host 1*charger 1*manual 1*touch screen pen 1*power supply 1*cartridge 1*positioning board
